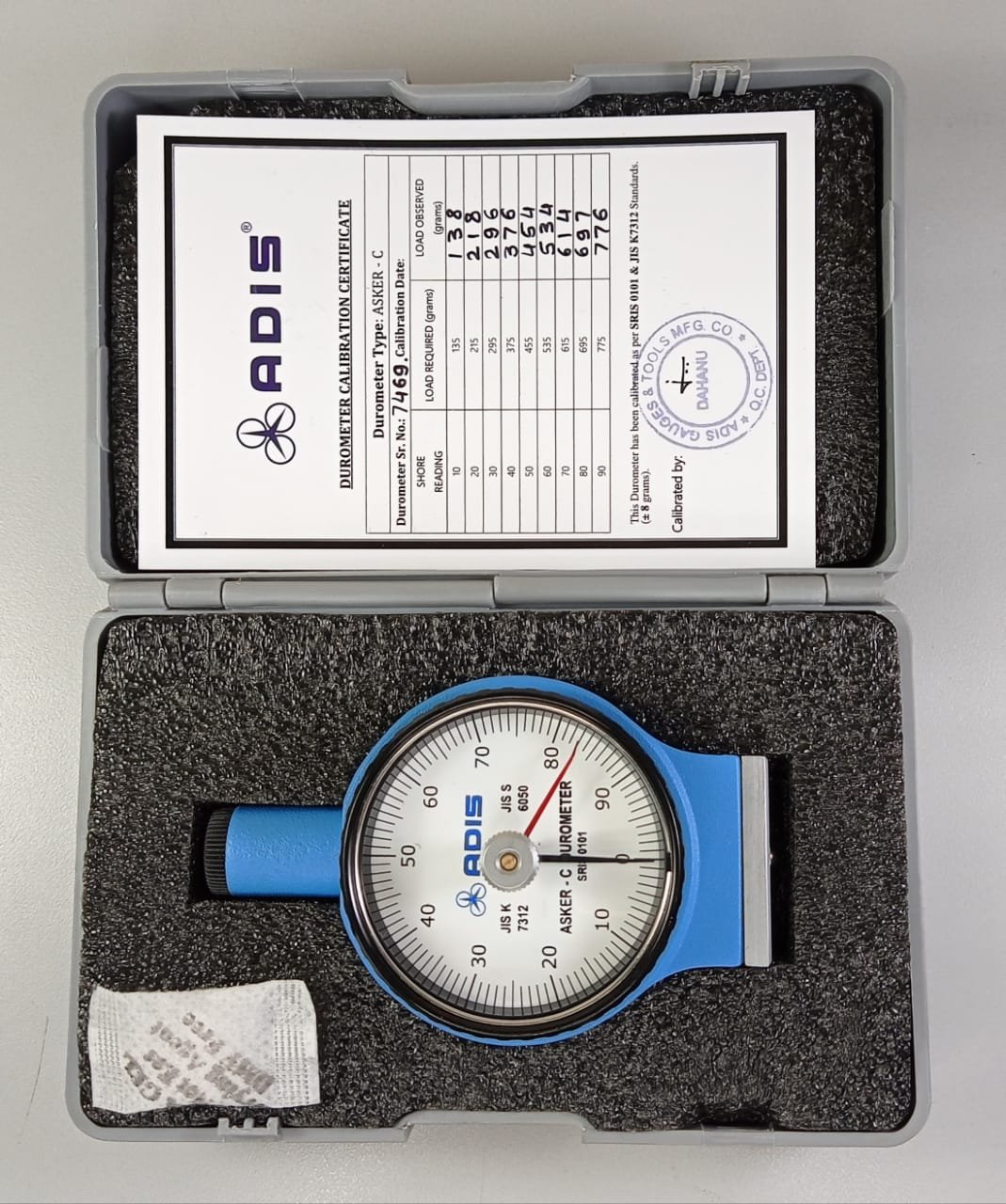

Asker - C

DESCRIPTION:

ADIS Durometers Asker - C is made from special Aluminium alloy, which allows our durometers to be lightweight, without compromising their durability and strength.

The key benefit of our Durometer is the unique design of its transmission system, which allows us to use HSS (High-Speed Steel) Rods as Indenter (Contact point) which is then guided on Linear Ball Bearings and not on Bush Bearings like in most Durometers, as a result, the coefficient of friction is significantly lower while using the Durometer. Hence, results in smoother transmission and increases our Durometers sensitivity.

It’s designed to fit comfortably & firmly in your hand.

It has a secondary red Drag Pointer which helps while measuring the hardness by following the main pointer and remains at the highest point until it is reset by a knob on the front of the Durometer glass.

It meets the JIS K 7312 and JIS S 6050 standards.

It has an Accuracy of ± 1 ACH

Measuring force of 8.38 N (0.855 gm.)

The indenter (contact point) is in Spherical ball shape with Ø - 5.08 mm.

Its pressure foot diameter is 36 × 18 mm. (Rectangular)

Its net weight is approximately 200 grams.

Its Dimensions are (L x W x H) 100 x 62 x 35 mm.

It is used to measure the hardness of soft rubber, urethane foam, sponge, rolled threads, film -rolls and pottery clay, and footwear.

It is made in INDIA.

SPECIFICATION:

Standards	JIS K 7312  /  JIS S 6050
Indication range	0 - 100 point (360-degree dial scale)
Minimum indication	1 Div.
Accuracy	± 1 Div.
Indenter Design	Spherical  Ø - 5.08 mm
Spring Forces	8.38 N
Indenter Image
Pressure foot Dimension (mm)	36×18 (Rectangular)
Approx. Dimension (L×W×H)	63 x 33× 100 mm
Weight (g)	250 g
Application	Soft rubber, urethane foam, sponge, rolled threads, film -rolls and pottery clay, footwear.
