Durometer Shore A (C. A. F. M.)

Product Selling Type: Domestic

180$

Quantity:

DESCRIPTION:

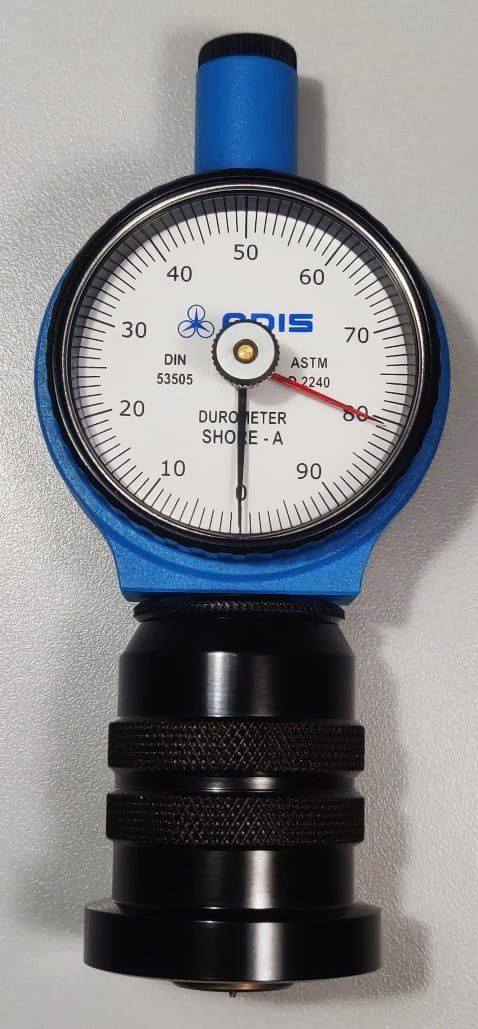

ADIS Durometers Shore A (C.A.F.M.) is made from special Aluminium alloy, which allows our durometers to be lightweight, without compromising their durability and strength.

The key benefit of our Durometer is the unique design of its transmission system, which allows us to use HSS (High-Speed Steel) Rods as Indenter (Contact point) which is then guided on Linear Ball Bearings and not on Bush Bearings like in most Durometers, as a result, the coefficient of friction is significantly lower while using the Durometer. Hence, results in smoother transmission and increases our Durometers sensitivity.

The C.A.F.M. (Constant applying Force Mechanism) helps customers by eliminating applying force fluctuating from person to person, resulting in better repeatability. All type of Rubber Sheet Manufacturers has great demand for this instrument.

It’s designed to fit comfortably & firmly in your hand.

It has a secondary red Drag Pointer which helps while measuring the hardness by following the main pointer and remains at the highest point until it is reset by a knob on the front of the Durometer glass.

It meets the ASTM D 2240 and DIN 53505 standards.

It has an Accuracy of ± 1 HA

Measuring force of 8.06 N (0.822 gm.)

Indenter (contact point) is made of HSS Rod and has the hardness of 60 HRC which is ground to shape of a truncated cone with the included angel of 35° with close tolerances of ± 0°15”

Its pressure foot diameter is 18 mm. (± 0.5mm.)

Its net weight is approximately 700 grams.

Its Dimensions are (L x W x H) 63 x 40 x 150 mm.

It is used to measure the hardness of any form of rubber, silicone, PU, Printer Rollers, Tyres, PVC, etc in Sheet form.

It is made in INDIA.





SPECIFICATION:

Standards

ASTM D 2240 / DIN 53505

Indication range

0 - 100 Div. (360-degree dial scale)

Minimum indication

1 Shore

Accuracy

± 1 Shore

Indenter Design (mm)

Truncated Cone with 35° Included Angle

Spring Forces (N)

8.046 N

Indenter Image

Pressure foot Dimension

Ø 18 mm.

Outer Dimension (mm)

Approx. (L×W×H) 63 x 39× 150

Net Weight (g)

400 g

Application

To measure the hardness of Neoprene, EPDM rubber, polyurethane, printing rollers, silicone, white soft PVC, and other similar materials in sheet form.
