Shore D Export

Product Selling Type: International

110$

Quantity:



DESCRIPTION:

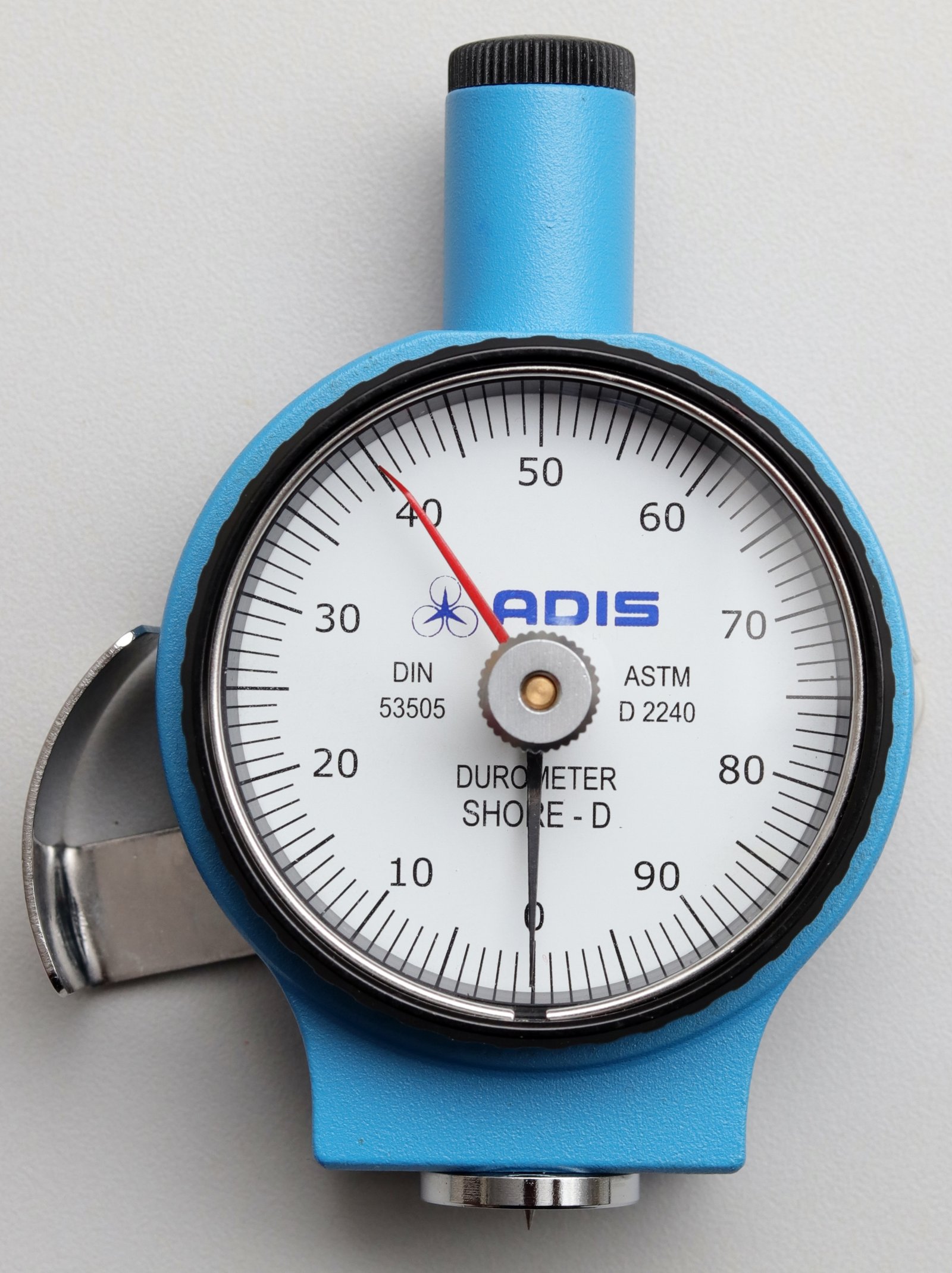

ADIS Durometers Shore D (Export) is made from special Aluminium alloy, which allows our durometers to be lightweight, without compromising their durability and strength.

The key benefit of our Durometer is the unique design of its transmission system, which allows us to use HSS (High-Speed Steel) Rods as Indenter (Contact point) which is then guided on Linear Ball Bearings and not on Bush Bearings like in most Durometers, as a result, the coefficient of friction is significantly lower while using the Durometer. Hence, results in smoother transmission and increases our Durometers sensitivity.

It’s designed to fit comfortably & firmly in your hand.

It has a secondary red Drag Pointer which helps while measuring the hardness by following the main pointer and remains at the highest point until it is reset by a knob on the front of the Durometer glass.

It meets the ASTM D 2240 and DIN 53505 standards.

It has an Accuracy of ± 1 HA

Measuring force of 44.49 N (4.540 gm.)

Indenter (contact point) is made of HSS Rod and has a hardness of 60 HRC which is ground to the shape of a cone with the included angle of 30° with close tolerances of ± 0°30” and nose radius of 0.1 mm.

Its pressure foot diameter is 18 mm. (± 0.5mm.)

Its net weight is approximately 200 grams.

Its Dimensions are (L x W x H) 63 x 40 x 100 mm.

It is used to measure the hardness of Polyester (Plastics), ABS, Hard Nylon, Hard PU, Kevlar, Acrylic, Wood, Vulcanised Rubber, Ebonite, Etc.

It is made in INDIA.





SPECIFICATION:-

Standards ASTM D 2240 / DIN 53505
Indication range 0 - 100 Div. (360° dial scale)
Minimum indication 1 Shore
Accuracy ± 1 Shore
Indenter Design Conical 30° Included Angle
Spring Forces (N) 44.49 N
Indenter Image
Pressure foot Dimension Ø 18 mm.
Approx. Outer Dimension (mm) (L×W×H)   63 x 39× 102
Weight (g) 200 g
Application                                                                                                                                            To determine indentation hardness of Pipeline Coating, Hard Rubber, Acrylic, Delrin, Kevlar, PVC, Nylon, Lexan, and Epoxies.
